Applications

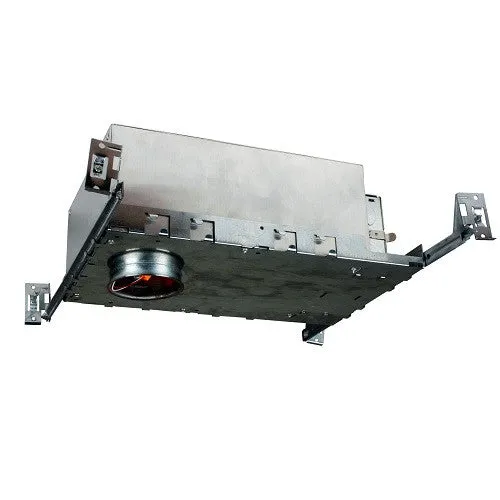

• Energy saving LED can and module for new construction as well as remodel applications.
• 75% energy savings in comparison to incandescent sources.

Illumination

• Long Life LEDs with up to 50,000 hours at 70% lumen maintenance.
• Uses high power, high quality LEDs.
• Produces 600 lumens output from luminaire with a CCT of 3000K.
• Dimmable with most standard incandescent and low voltage dimmers.

Electrical

• LED driver with 120V input voltage.
• CRI >90.
• Power consumption: 9 watts.

Mounting

• Integral T-bar installation slots on new construction models.
• Two clips provided to secure can to housing on remodel cans.

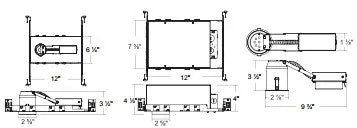

• Bar hangers on new construction models are adjustable from 13⅝" to 25" and can be repositioned 90° on plaster frame.
• Pre-installed real nail on new model easily installs in regular and engineered lumber.

Housing

• Galvanized steel construction.
• Selective models for use with insulated and non-insulated ceilings.
• Housing on IC (insulated ceiling) model can be removed from frame to provide access to junction box.

Warranty/Listing

• Tested in accordance with IESNA LM79 & LM80.
• cULus Listed for damp and wet locations (not suitable for coastal/salt water area).
• Energy Star qualifi ed.
• Operating temperatures of -30°C to 40°C.
• Meets State of California Title 24 requirements.
• 5 year warranty on all electronics and housing.
• Certified under ASTM-E283 for airtight construction (new construction models only).
