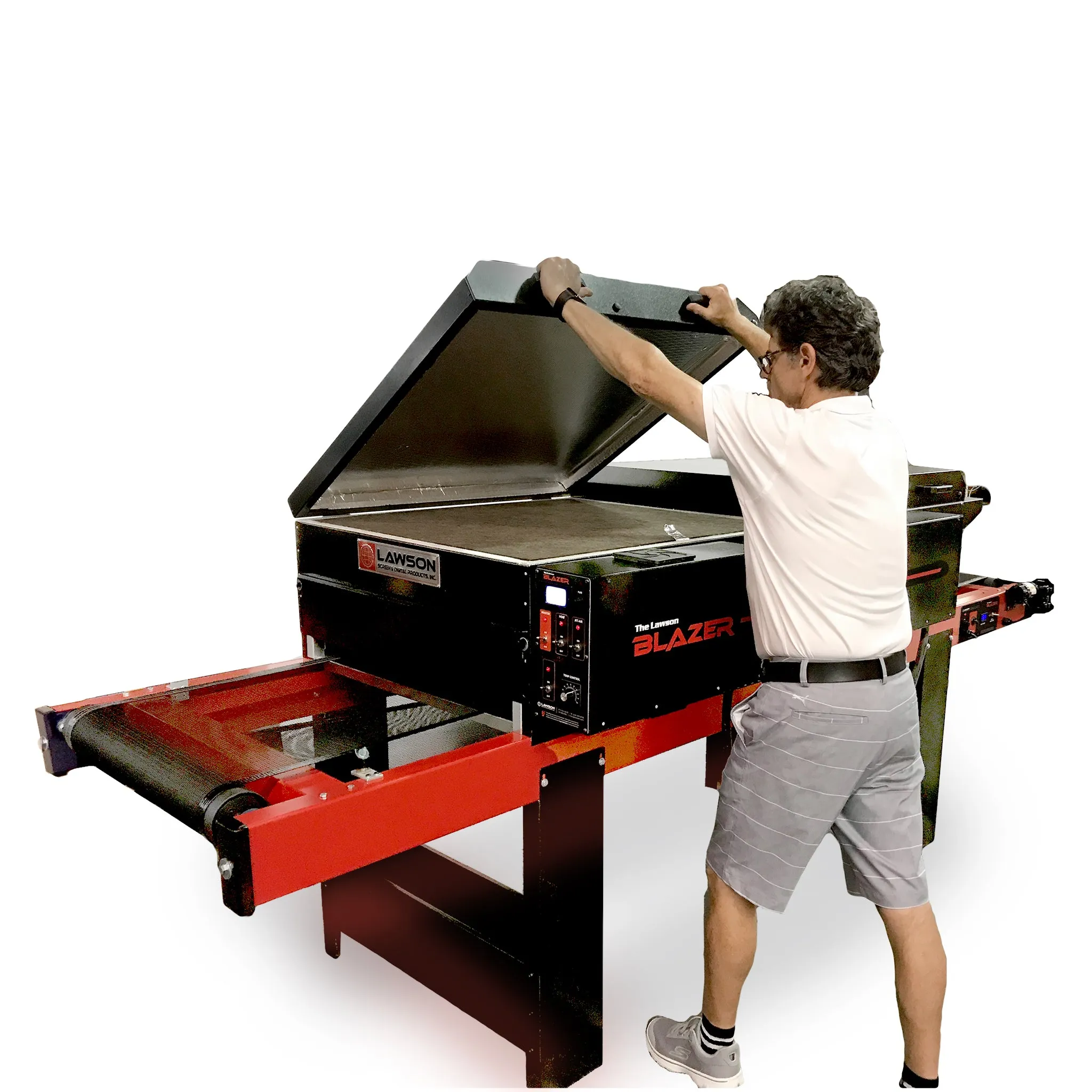

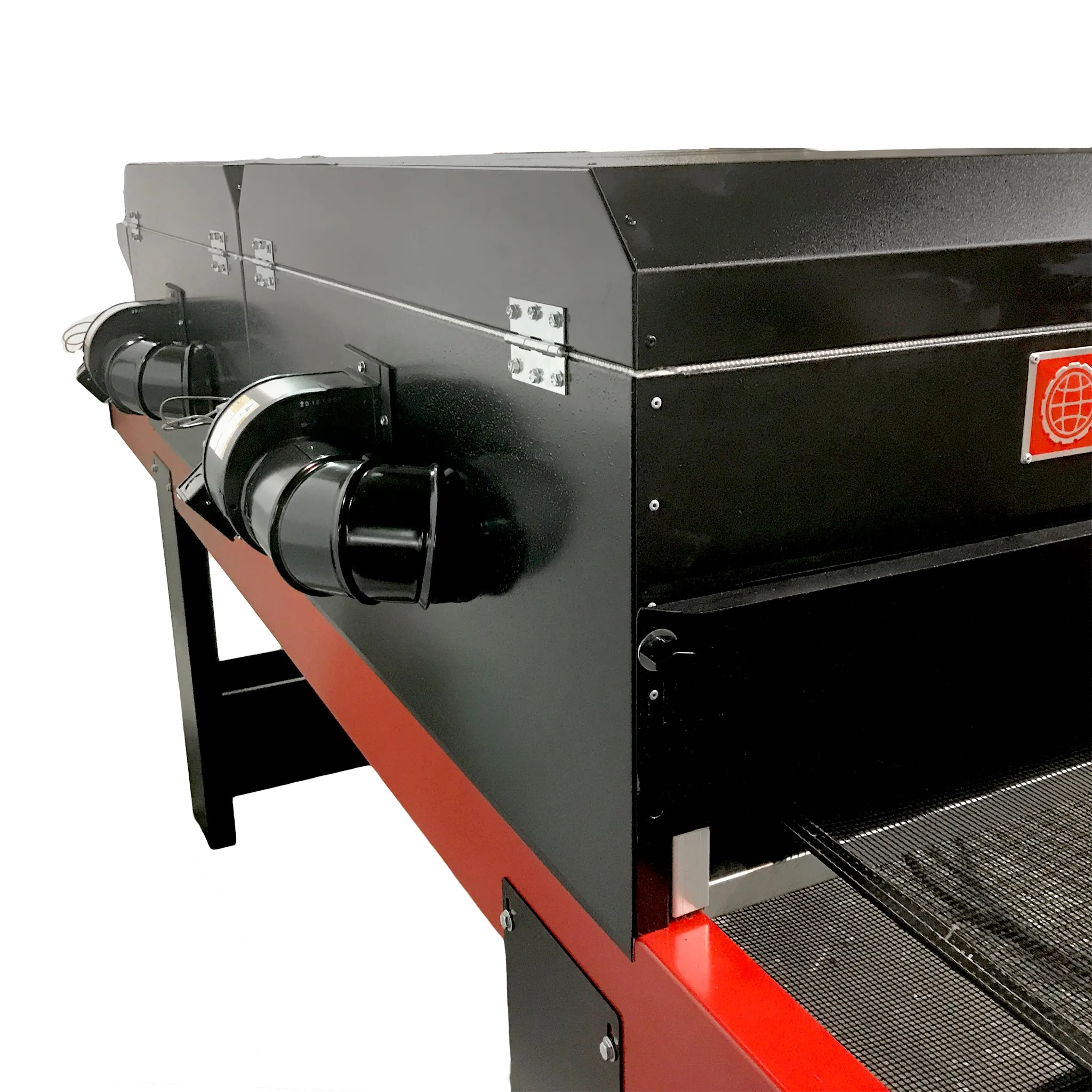

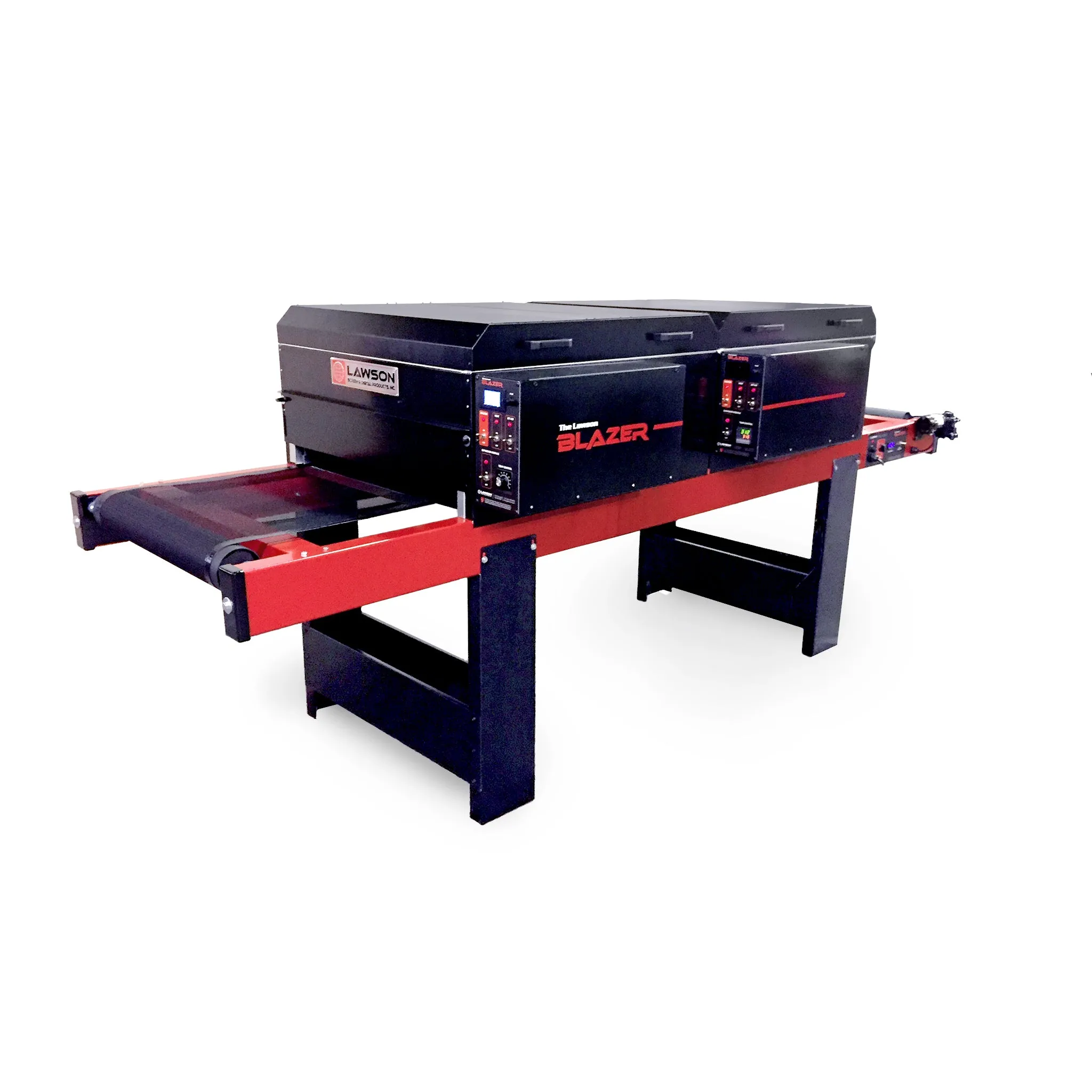

The Lawson Blazer screen printing and DTG conveyor dryer is designed for complete flexibility and maximum versatility. The Blazer features a fully modular design and can be easily customized and expanded whenever your needs may change. This custom screen printing machine is the ideal dryer to maximize your investment dollars.

It is designed for curing both plastisol and water-based inks. The basic conveyor is only 8' long, and includes one 3' heat chamber/curing module of your choosing. You can add any amount of heat chambers/curing modules at any time, even years later.

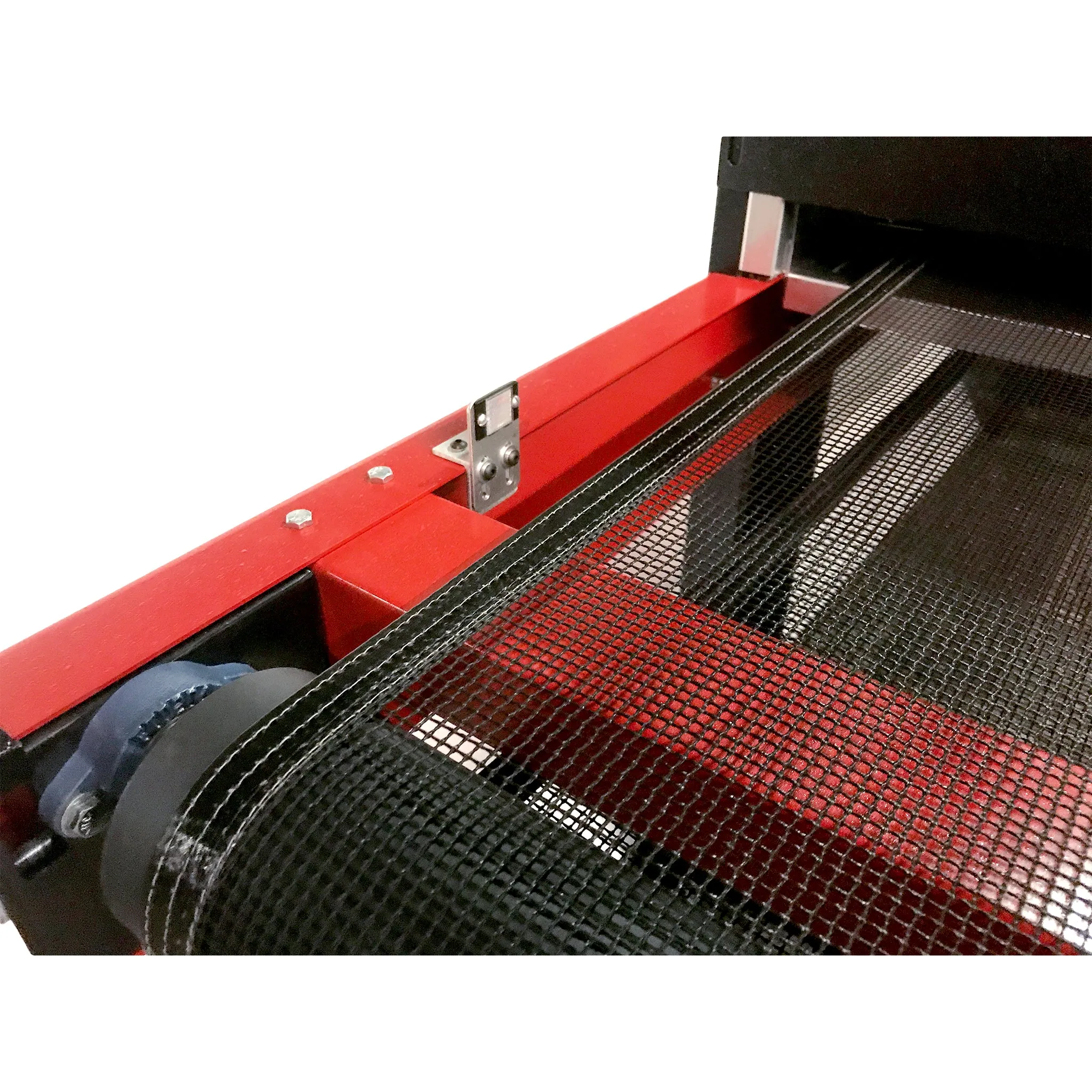

With true edge-to-edge heating elements, the Blazer provides consistent heat without increasing your utility bill like dryers with angled heating elements. The Arrow Belt™ conveyor system actually tracks the dryer belt for you.

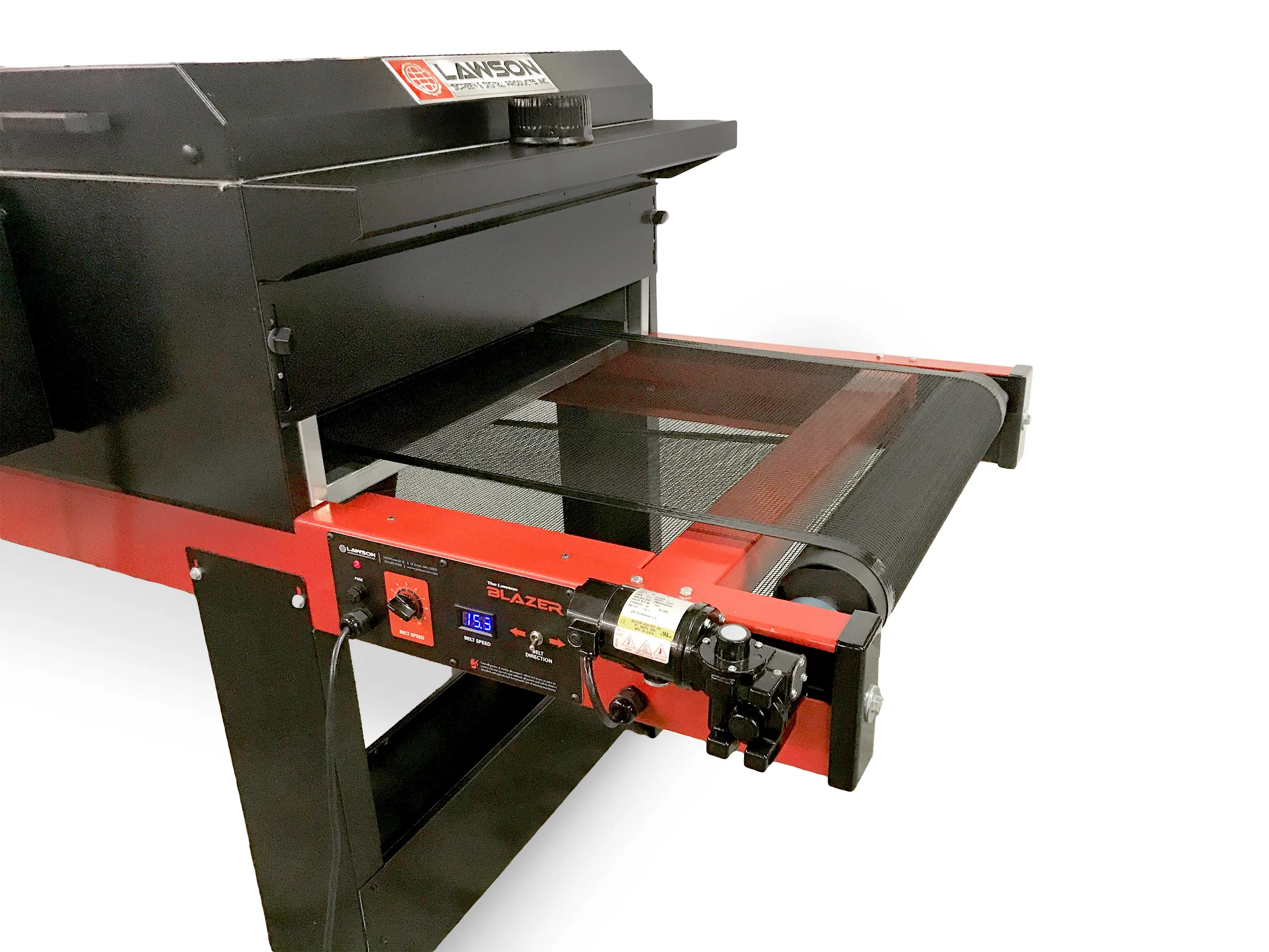

Select a standard belt width and standard length conveyor belt, or create a custom width and length that fits your specific needs. You can always increase the in-feed or out-feed of the Blazer anytime you want - this is a totally modular dryer!

1) Start by selecting the Width Conveyor Belt that you want: Standard Belt Widths: 24", 36", 48", 60"

2) Then select how Long you want your dryer to be: Standard Belt Lengths: 8', 12', 16', 19'

The Lawson Blazer allows you to select from a variety of curing options and heat modules.

3) Now select one of the following 3' Heat Chamber Modules:

A) I.R. with Jet-Air (most popular module)

D) Jet-Air Cooling Modules

E) Split Belt Designs (2 or 3 belt designs available)

All heat chambers are specifically designed to maximize energy efficiency and are double insulated. If you are looking for a conveyor dryer that saves space and energy, and still provides maximum production, then the Blazer is an ideal companion to manual or automatic presses.

Custom lengths are easily accommodated
